Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | CarlinKit |
| Certification: | CE/FCC/NCC/KCC/TELEC/Design Patent/Bluetooth Certification |
| Model Number: | CPC200-CCPA |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Gift carton 20X18X6 cm |
| Delivery Time: | 3~5 work days |
| Supply Ability: | 10,000carton per month |
|
Detail Information |
|||
| CPU: | Atmel AT91SAM9260 | WIFI Module: | Broadcom BCM4358 |
|---|---|---|---|
| MFI: | MFI 3959/MFI 3989 | WIFI Frequency: | 5150-5250MHz，5725-5850MHz / 2412-2472MHz |
| Bluetooth Version: | 4.0 | Antenna Specifications: | 3 Dbi Built-in FPC Antenna |
| Highlight: | Android 4.4+ To Wireless Carplay Android Auto USB Dongle,High Speed CPC200-CCPA USB Dongle,Android 4.4+ To Carplay Android Auto Usb Dongle |
||

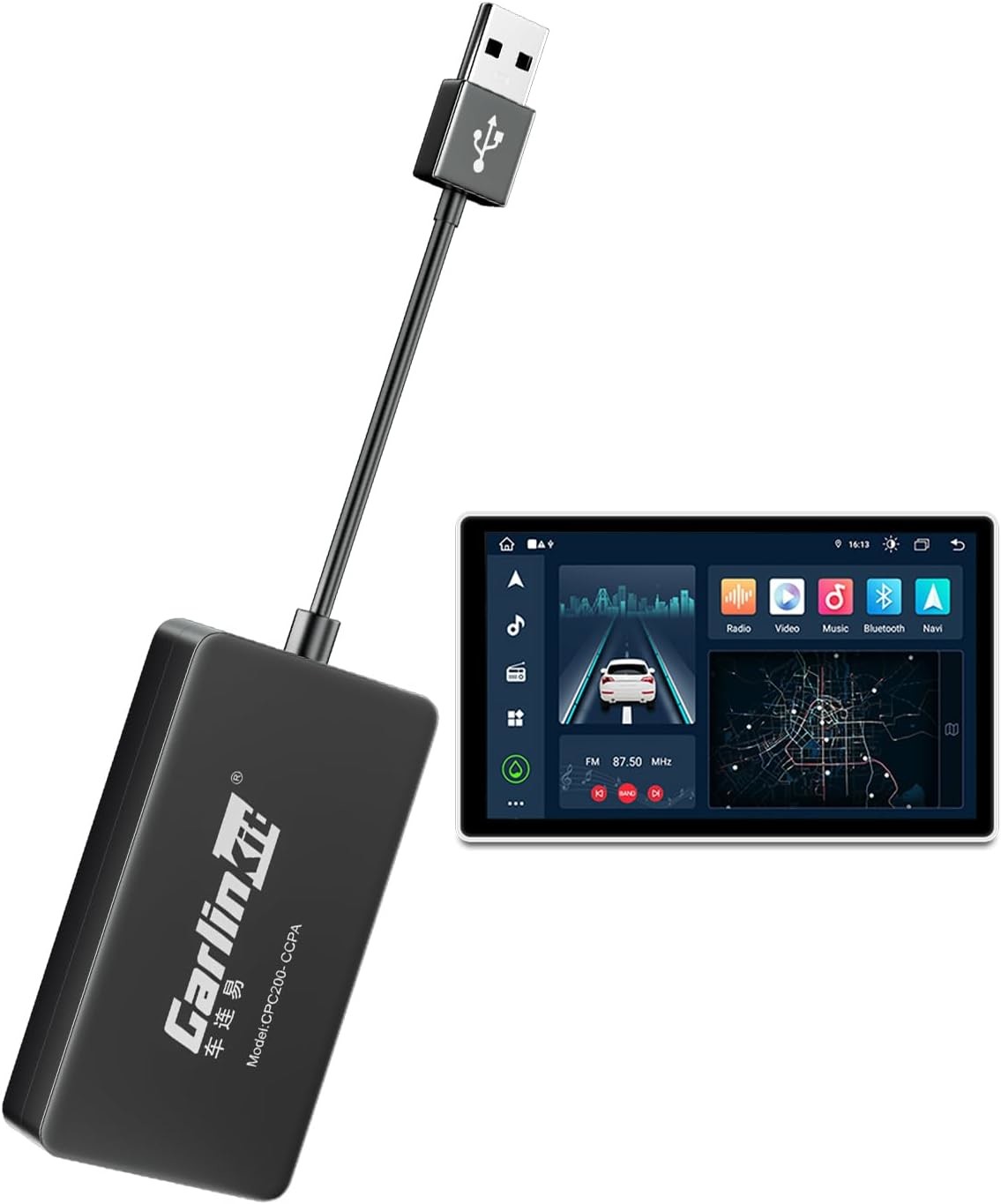

Product Description
Only for Android head unit with Android 4.4.2 or above operating system.
Compatible with Car, Phone Devices, for the car with Andrio System
Enjoy automatic and wireless connection to CarPlay without USB-cable.
Wireless CarPlay easy to play music, get navigation, or use Siri wire-free
Built-in 5G smart chip, fast processing speed & response in high sensitivity
| Model | CPC200-CCPA |
| CPU | Atmel AT91SAM9260 |
| WiFi Module | Broadcom BCM4358 |
| MFI | MFI 3959/MFI 3989 |
| Bluetooth Version | 4.1 |
| Antenna | 3 dbi built-in FPC antenna |
| Power Input | DC5V+/-0.2V 1.0A |
| Power Output | DC5V+/-0.2V 1.0A |
| Power Consumption | 0.75W |
| WiFi Frequency | 5150-5250MHz,5725-5850MHz / 2412-2472MHz |
| Material | ABS |
| Colour | Black |
| Surface Treatment | Frosted |
| Pressing Method | Ultrasonic casting |
| Compatible Car | Android 4.4 and above system versions |
| Resolution | Adaptive (maintain the original protocol resolution) |
| Language | Automatically switch according to the vehicle language environment |
| Port | LED light,USB female port,USB male port |
| Product Size | 178*40*13mm |
| Package Dimensions | 80*210*25mm |
| Product Weight | 0.034kg |
| Packing Gross Weight | 0.08kg |

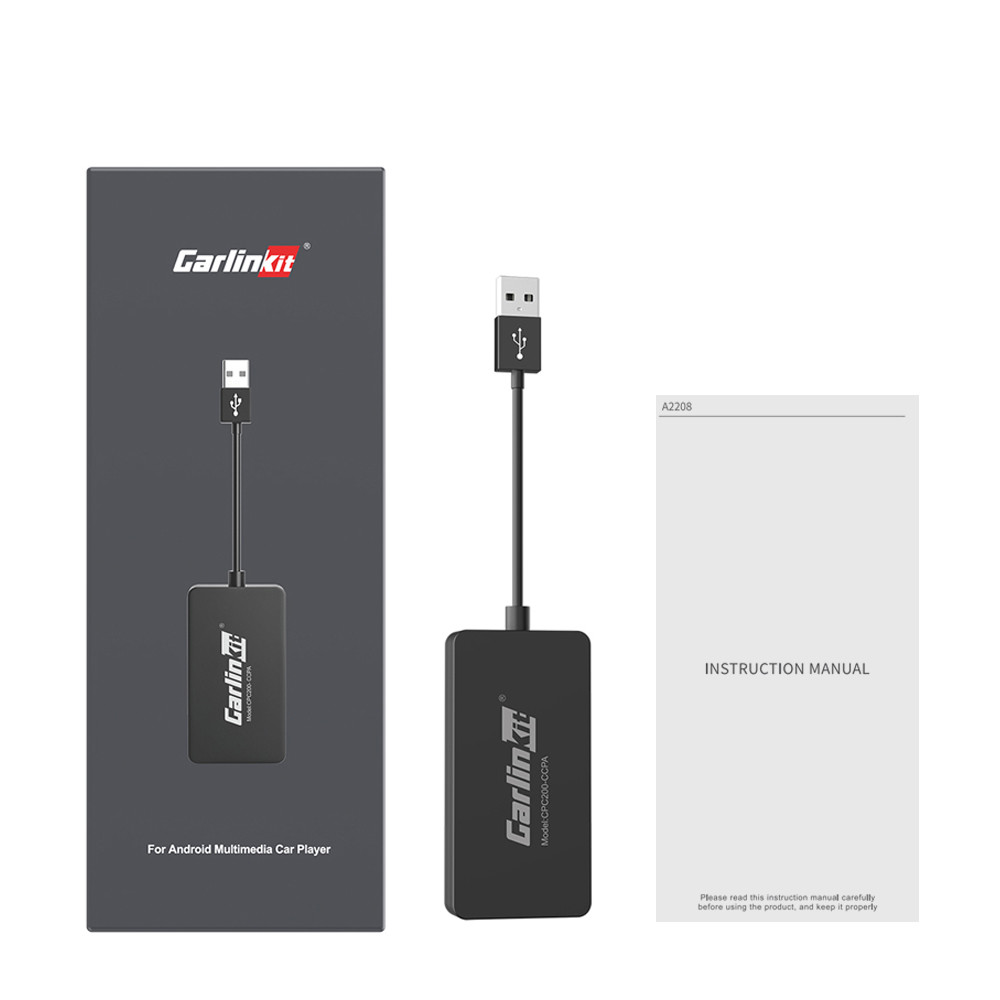

| Packing List | Packing box*1,product*1,product manual*1 |
Installation Prerequisites:
Car stereos with android system version(4.4.2 or above),
Install the Autokit App in the car system, dongle Connect the Car's AutoKit app to get CarPlay
Wireless Apple connection: Open AutoKit APK on the car machine, insert product, Apple phone
WiFi and Bluetooth are turned on at the same time, Apple phone Bluetooth connection product signal
Wireless Android auto connection: Open AutoKit APK on the car machine, insert product, Android phone
WiFi and Bluetooth Turn on at the same time, the Bluetooth of the Android phone is connected to the product signal.
Sensorless connection
Built-in 5G smart chip, fast processing speed and high sensitivity response
Wireless Carplay and Andriod retaining the wired connection function
Non-sensitive connection technology, fast and automatic connection
Mirroring Screen Casting
Enjoy the splendor of the big screen,powerful screen mapping function,
Synchronize the cell phone screen,All APPs projected
Wireless Andriod Auto
Sync your phone's apps while you focus on driving
Navigation,Music, plucking and calling, Siri voice, messages--plug in and go
· Sub-meter positioning accuracy to lane level
· Can access popular navigation apps like Apple Maps, Google and Waze
· Real-time directions, traffic updates, and estimated arrival times
· High-definition rendering technology to restore the real road scene
