Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | CarlinKit |
| Certification: | RoHs/FCC/CE/TELEC/NCC/SRRC |
| Model Number: | CPC200-TBox UHD(SM6225 64G) |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Gift carton 110*106*39mm |
| Delivery Time: | 3-5 days |
| Supply Ability: | 10,000 carton per month |
|
Detail Information |
|||
| CPU: | Qualcomm’s SM6225 Quad-core | GPU: | Adreno 610 |
|---|---|---|---|
| ROM: | 4GB LPDDR4 RAM+64GB UFS ROM | WIFI Frequency: | 802.11a/b/g/n/ac, 2.4G+5G |
| Bluetooth Version: | 5.0 BR/EDR/BLE | System: | Android 13 |
| Highlight: | Tbox Youtube Netflix Wireless Magicbox,CPC200 Android 13 Carplay Magicbox,Wireless Android 13 Carplay Magicbox |
||
Product Description

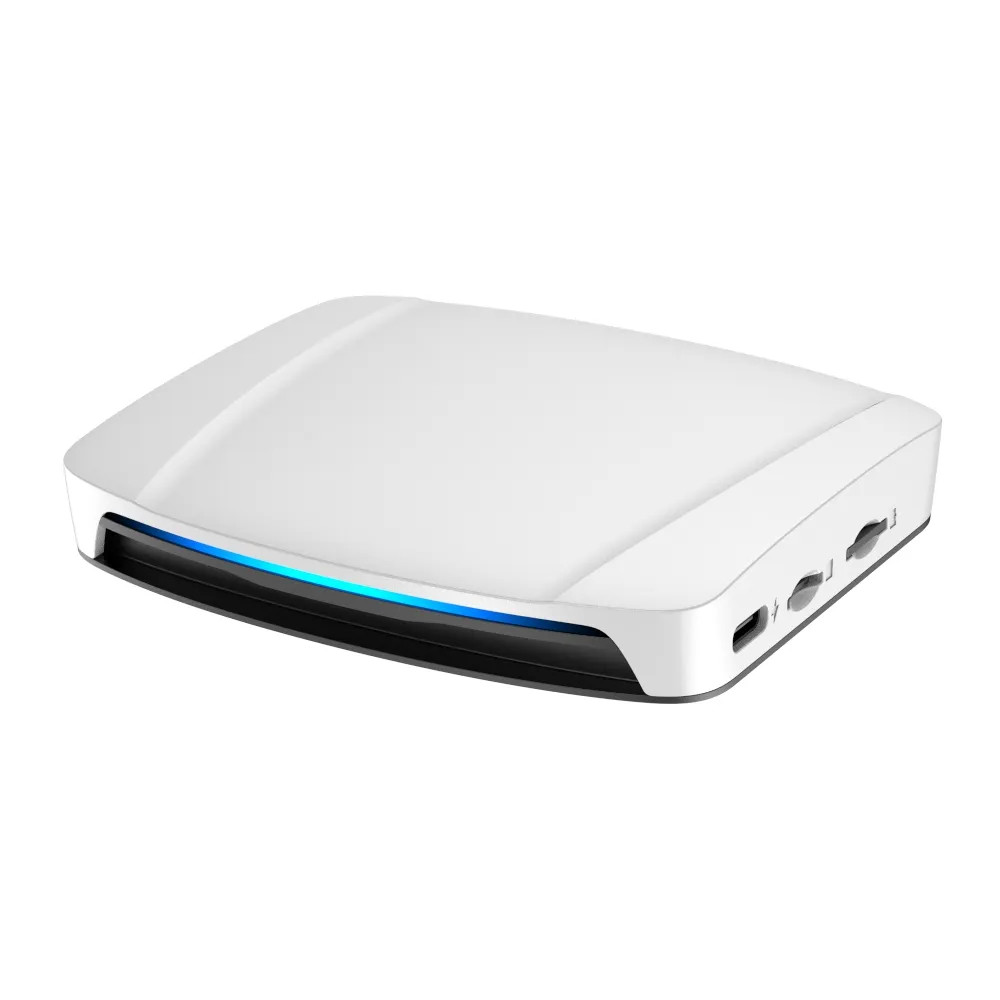

Carplay& Andriod Auto to Multi Media - Youtube Netflix Wireless Magicbox for Android 13
CarPlay TBox-UHD Android Auto Box SM6225 4G 64Gb
Carplay & Andriod Auto link to Andriod system Multi Media
HDMI Output Connect Everything Everywhere
Built-in Full Android 13.0, Wireless Apple CarPlay, Wireless Android Auto
Dual Bluetooth, 5.8GHz WiFi, Siri/Google Assistant Voice Control
HDMI output projection to secondary screen / rear screen, seperate control between 2 screens
| Model | CPC200-Tbox-UHD |
| CPU | Qualcomm’s SM6225 Quad-core ARM Cortex-A73, Kryo 265 Gold @2.4GHz+Quad-core ARM Cortex- A53,Kryo 265 Silver @1.9GHz) 6 nm N6 process |
| GPU | Adreno 610 |
| Memory | 4GB LPDDR4 RAM+64GB UFS ROM |
| Support Extension | 512GB |
| WiFi Module | WCN3980 |
| MFI | MFI 3959 |
| Operator Version | NA(North America)/EAU(Europe, Asia)/JP(Japan) |
| Communication Standard | LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE |
| Global Positioning | GPS/GLONASS/BeiDou |
| Bluetooth frequency | 5.0 BR/EDR/BLE |
| Power Input | 5V+/-0.2V 2A |
| Power Consumption | 6W |
| WiFi Frequency | 802.11a/b/g/n/ac, 2.4G+5G |
| Material | ABS |
| Colour | White |
| The wireless CarPlay | iPhone 6 and above / iOS 10.0 and above |
| Wireless Android Auto | Android phone with Android 11.0 and above |
| Compatible Car | Car with factory wired CarPlay/wired Android Auto |
| Resolution | Adaptive (maintain the original protocol resolution) |
| Language | Multiple languages around the world, such as: Arabic, Chinese, English, French |
| Port | LED Light, Type-C Female Port, TF Card Slot, HDMI port |
| Date cable | USB-A to USB-C*1 USB-C to USB-C*1 L=300mm HDMI Adapter*1 L=170mm |
| Product Size | 90*84.9*17.1mm 3.54*3.34*0.67 inch |
| Package Dimensions | 110*106*39mm |
| Product Weight | 0.1034kg |
| Packing Gross Weight | 0.244kg |

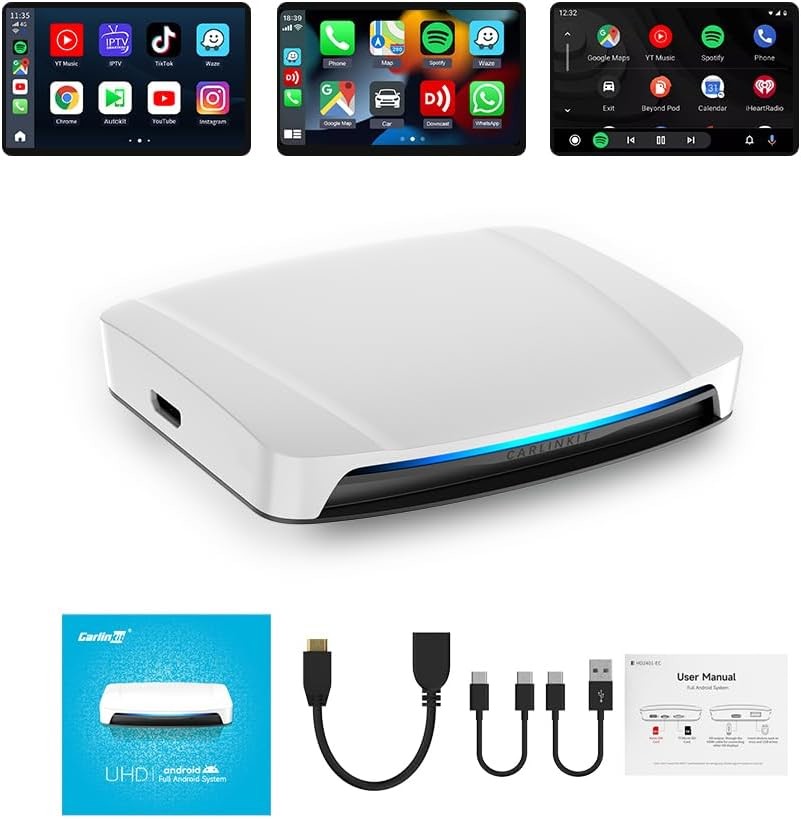

| Packing List | Packing Box* 1, Product *1, Data cable *2, HDMI Adapter *1, Product Manual *1,Ejection Pin *1 |
Car models with wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay: iOS10+, iPhone6+
Wireless Android Auto: Android 11.0+
HDMI High Output
MiniHDMI interface, high-definition video and audio transmission,
High-definition display picture,video and sound quality
Split-screen switching display, do not interfere with each other
Dual channel switching
Dual channel switching, enabling effortless transition between Carplay (default) and Android Auto modes.
Switching modes via the TF card (requires file transfer) or using the pin port located at the bottom
Insert the card's pin and hold for approximately 3 seconds to switch modes, green light indicating Carplay mode
Quality Upgrade
8-core SM6225-64-bit processor,Qualcomm Snapdragon SM6125 mobile platform.
6nm technology, more powerful performance, running fast
Smooth operation and high performance
Multiple satellite navigation systems
China Beidou + US GPS + Russia Glonass,Triple positioning,
· Real-time directions, traffic updates, and estimated arrival times
· High-definition rendering technology to restore the real road scene
· Sub-meter positioning accuracy to lane level
