Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | CarlinKit |
| Certification: | RoHs/FCC/CE/TELEC/NCC/SRRC |
| Model Number: | CPC200-TBox UHD(SDM660 128G) |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Gift carton 110*106*39mm |
| Delivery Time: | 3-5 days |
| Supply Ability: | 10,000 carton per month |
|
Detail Information |
|||
| CPU: | Qualcomm SDM660 Quad-core | GPU: | A512 650MHz |
|---|---|---|---|
| ROM: | 8GB LPDDR4 RAM+128GB UFS ROM | WIFI Frequency: | 802.11a/b/g/n/ac, 2.4G+5G |
| Bluetooth Version: | 5.0 BR/EDR/BLE | System: | Android 13 |
| Highlight: | Android 13.0 Wireless CarPlay Video Box,Multimedia Video Box CPC200-TBox UHD,HDMI High Output CPC200-Tbox Ai Box |
||
Product Description
Carplay& Andriod Auto to Multi Media - TBox-UHD Android Auto Play Box SDM660 8G 128Gb
Youtube Netflix Wireless Magicbox for Android 13 CarRich audiovisual entertainment
Carplay & Andriod Auto link to Andriod system Multi Media
HDMI Output Connect Everything Everywhere

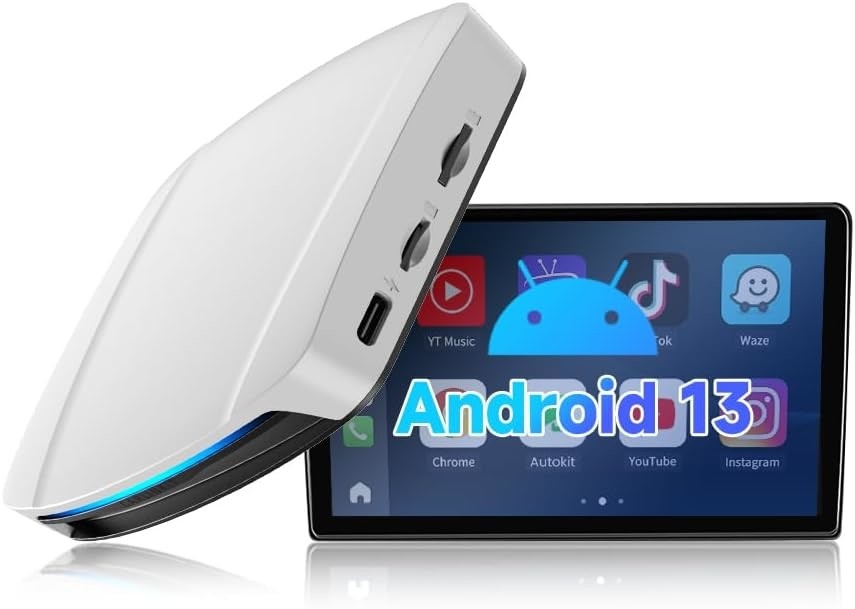

Built-in Full Android 13.0, Wireless Apple CarPlay, Wireless Android Auto
Dual Bluetooth, 5.8GHz WiFi, Siri/Google Assistant Voice Control
HDMI output projection to secondary screen / rear screen, seperate control between 2 screens
| Model | CPC200-Tbox-UHD |
| CPU | Qualcomm’s SDM660 4 x Kryo Gold 2.2GHz+4 x Kryo Silver 1.8GHz |
| GPU | A512 650MHz |
| Memory | 8GB LPDDR4 RAM+128GB UFS ROM |
| Support Extension | 512GB |
| WiFi Module | WCN3980 |
| MFI | MFI 3959 |
| Operator Version | NA(North America)/EAU(Europe, Asia)/JP(Japan) |
| Communication Standard | LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE |
| Global Positioning | GPS/GLONASS/BeiDou |
| Bluetooth frequency | 5.0 BR/EDR/BLE |
| Power Input | 5V+/-0.2V 2A |
| Power Consumption | 6W |
| WiFi Frequency | 802.11a/b/g/n/ac, 2.4G+5G |
| Material | ABS |
| Colour | White |
| The wireless CarPlay | iPhone 6 and above / iOS 10.0 and above |
| Wireless Android Auto | Android phone with Android 11.0 and above |
| Compatible Car | Car with factory wired CarPlay/wired Android Auto |
| Resolution | Adaptive (maintain the original protocol resolution) |
| Language | Multiple languages around the world, such as: Arabic, Chinese, English, French |
| Port | LED Light, Type-C Female Port, TF Card Slot, HDMI port, USB Femal port |
| Date cable | USB-A to USB-C*1 USB-C to USB-C*1 L=300mm HDMI Adapter*1 L=170mm |
| Product Size | 90*84.9*17.1mm 3.54*3.34*0.67 inch |
| Package Dimensions | 110*106*39mm |
| Product Weight | 0.1034kg |
| Packing Gross Weight | 0.244kg |

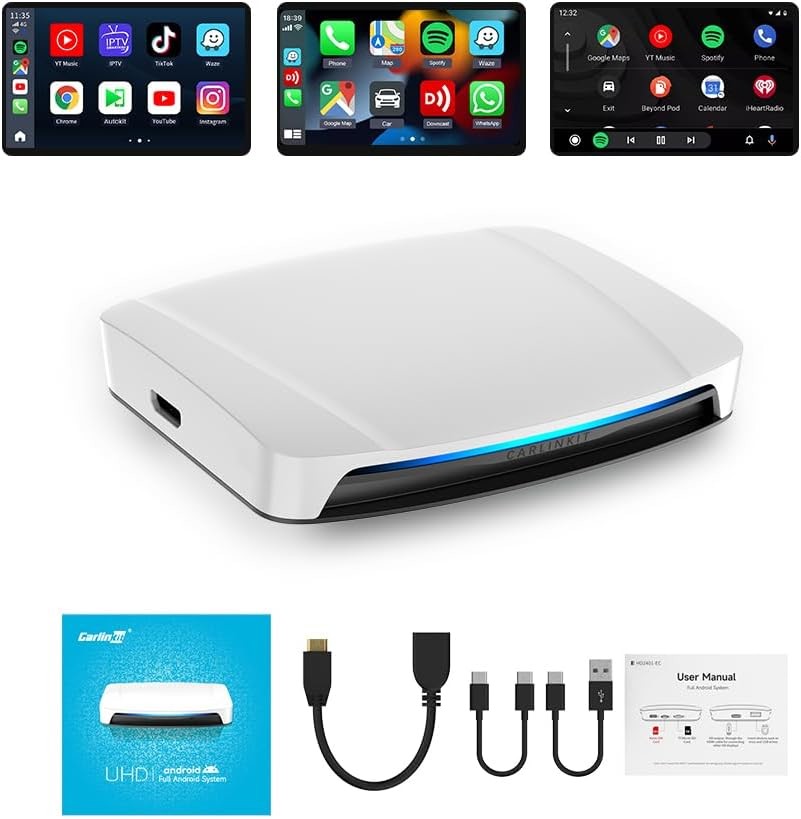

| Packing List | Packing Box* 1, Product *1, Data cable *2, HDMI Adapter *1, Product Manual *1,Ejection Pin *1 |
Car models with wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay: iOS10+, iPhone6+
Wireless Android Auto: Android 11.0+
HDMI High Output
MiniHDMI interface, high-definition video and audio transmission,
High-definition display picture,video and sound quality
Split-screen switching display, do not interfere with each other
Dual channel switching
Dual channel switching, enabling effortless transition between Carplay (default) and Android Auto modes.

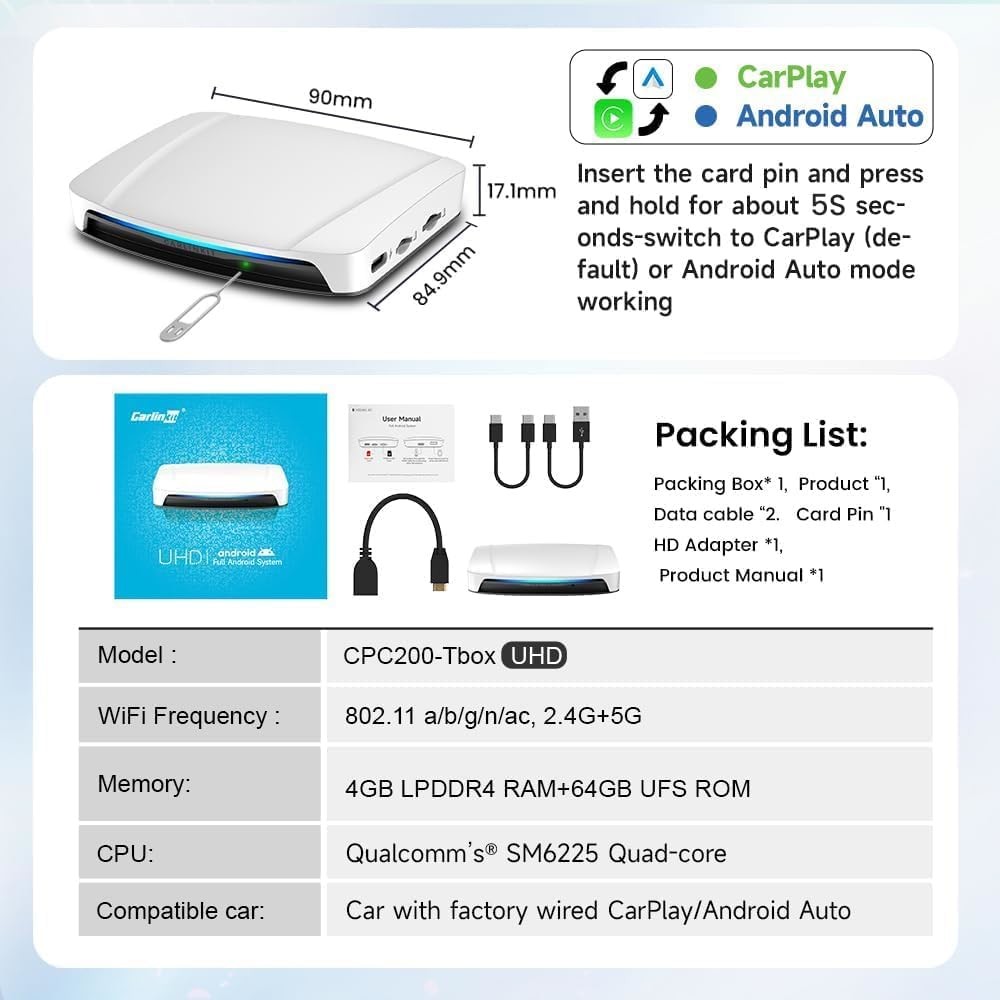

Switching modes via the TF card (requires file transfer) or using the pin port located at the bottom
Insert the card's pin and hold for approximately 3 seconds to switch modes, green light indicating Carplay mode
Quality Upgrade
8-core SDM 660-64-bit processor,Qualcomm Snapdragon SD660 mobile platform.
6nm technology, more powerful performance, running fast
Smooth operation and high performance
Multiple satellite navigation systems
China Beidou + US GPS + Russia Glonass,Triple positioning,
· Real-time directions, traffic updates, and estimated arrival times
· High-definition rendering technology to restore the real road scene
· Sub-meter positioning accuracy to lane level
