Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | CarlinKit |
| Certification: | RoHs/FCC/CE/TELEC/NCC/SRRC |
| Model Number: | CPC200-TBox UHD(SDM660 64G) |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Gift carton 110*106*39mm |
| Delivery Time: | 3-5 days |
| Supply Ability: | 10,000 carton per month |
|
Detail Information |
|||
| CPU: | Qualcomm SDM660 Quad-core | GPU: | A512 650MHz |
|---|---|---|---|
| ROM: | 4GB LPDDR4 RAM+64GB UFS ROM | WIFI Frequency: | 802.11a/b/g/n/ac, 2.4G+5G |
| Bluetooth Version: | 5.0 BR/EDR/BLE | System: | Android 13 |
| Highlight: | Carplay and Andriod Auto to Multi Media,Carplay and Andriod Auto Ai Box,4K HD Video Output UHD TV Box |
||

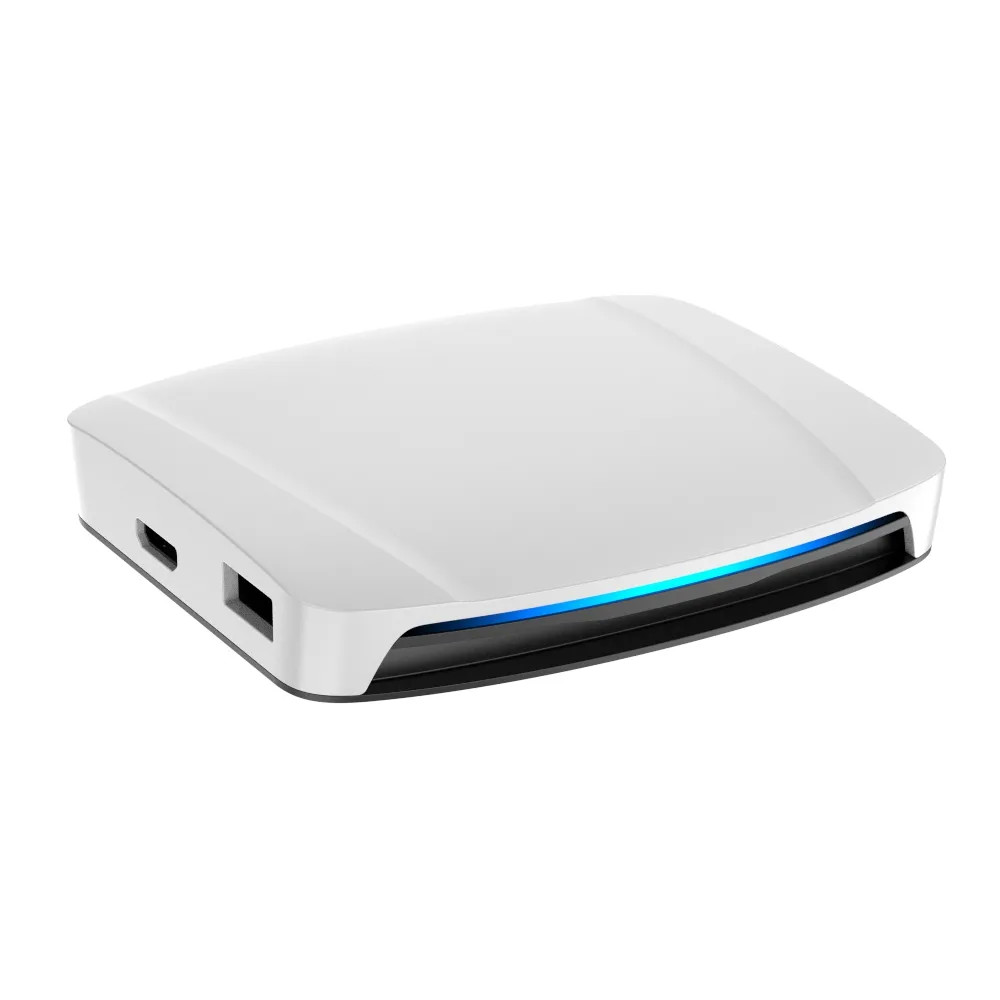

Product Description
Carplay& Andriod Auto to Multi Media - 4K HD Video Output Online Video FOTA
UHD TVBox Android 13 SDM 660 4Gb Adapter
Built-in Full Android 13.0, Wireless Apple CarPlay, Wireless Android Auto,
Qualcomm SDM660 Processor, 4GB+64GB, 4G Cellular (SIM Card Slot), TF Card (up to 512GB)
Feature enables HDMI connection, facilitating HD image output connectivity with HD displays.
Split-screen display allows for seamless multitasking without interference.
Low power consumption design. Keep your hands free and drive safely
| Model | CPC200-Tbox-UHD |
| CPU | Qualcomm’s SDM660 4 x Kryo Gold 2.2GHz+4 x Kryo Silver 1.8GHz |
| GPU | A512 650MHz |
| Memory | 4GB LPDDR4 RAM+64GB UFS ROM |
| Support Extension | 512GB |
| WiFi Module | WCN3980 |
| MFI | MFI 3959 |
| Operator Version | NA(North America)/EAU(Europe, Asia)/JP(Japan) |
| Communication Standard | LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE |
| Global Positioning | GPS/GLONASS/BeiDou |
| Bluetooth frequency | 5.0 BR/EDR/BLE |
| Power Input | 5V+/-0.2V 2A |
| Power Consumption | 6W |
| WiFi Frequency | 802.11a/b/g/n/ac, 2.4G+5G |
| Material | ABS |
| Colour | White |
| The wireless CarPlay | iPhone 6 and above / iOS 10.0 and above |
| Wireless Android Auto | Android phone with Android 11.0 and above |
| Compatible Car | Car with factory wired CarPlay/wired Android Auto |
| Resolution | Adaptive (maintain the original protocol resolution) |
| Language | Multiple languages around the world, such as: Arabic, Chinese, English, French |

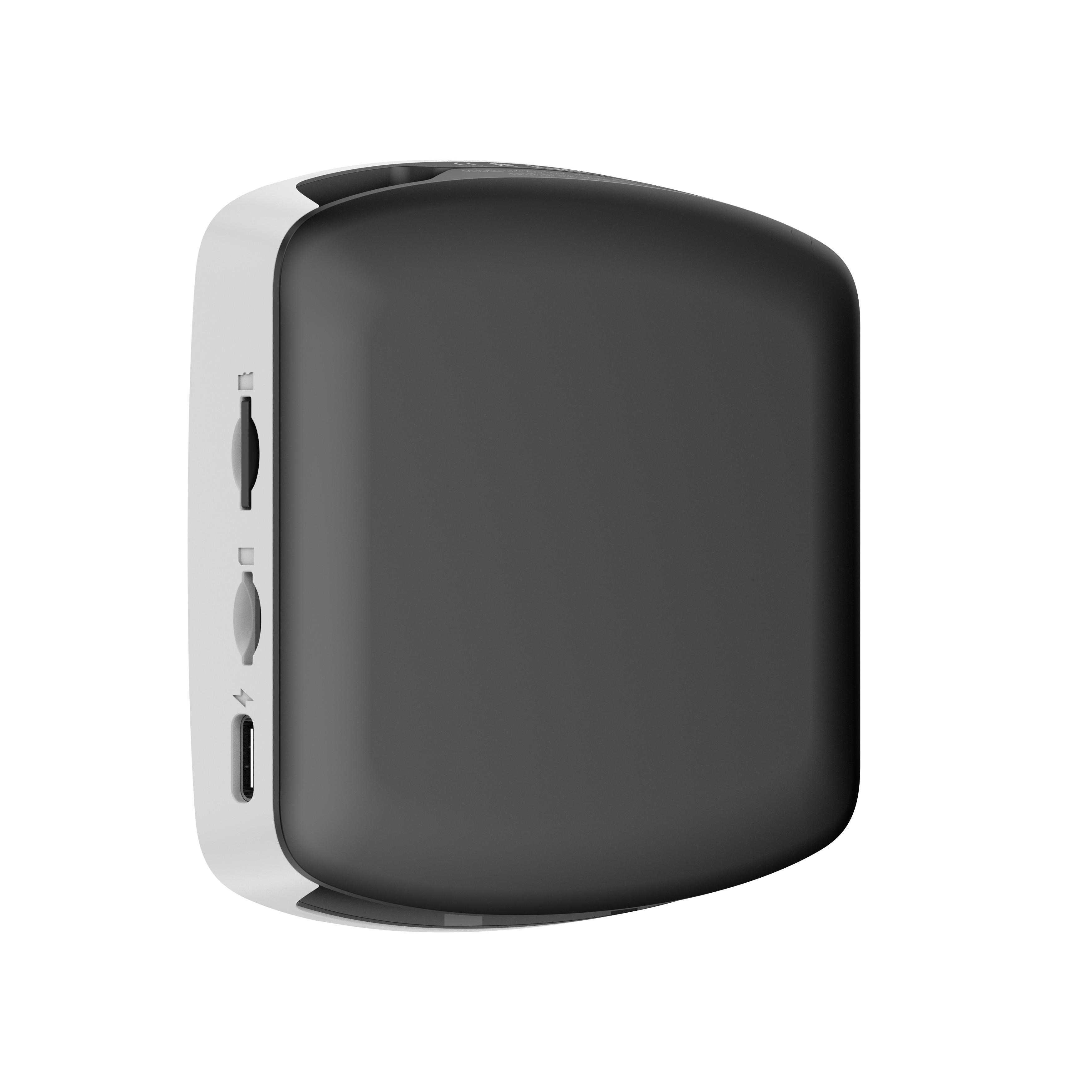

| Port | LED Light, Type-C Female Port, TF Card Slot, HDMI port, USB Femal port |
| Date cable | USB-A to USB-C*1 USB-C to USB-C*1 L=300mm HDMI Adapter*1 L=170mm |
| Product Size | 90*84.9*17.1mm 3.54*3.34*0.67 inch |
| Package Dimensions | 110*106*39mm |
| Product Weight | 0.1034kg |
| Packing Gross Weight | 0.244kg |

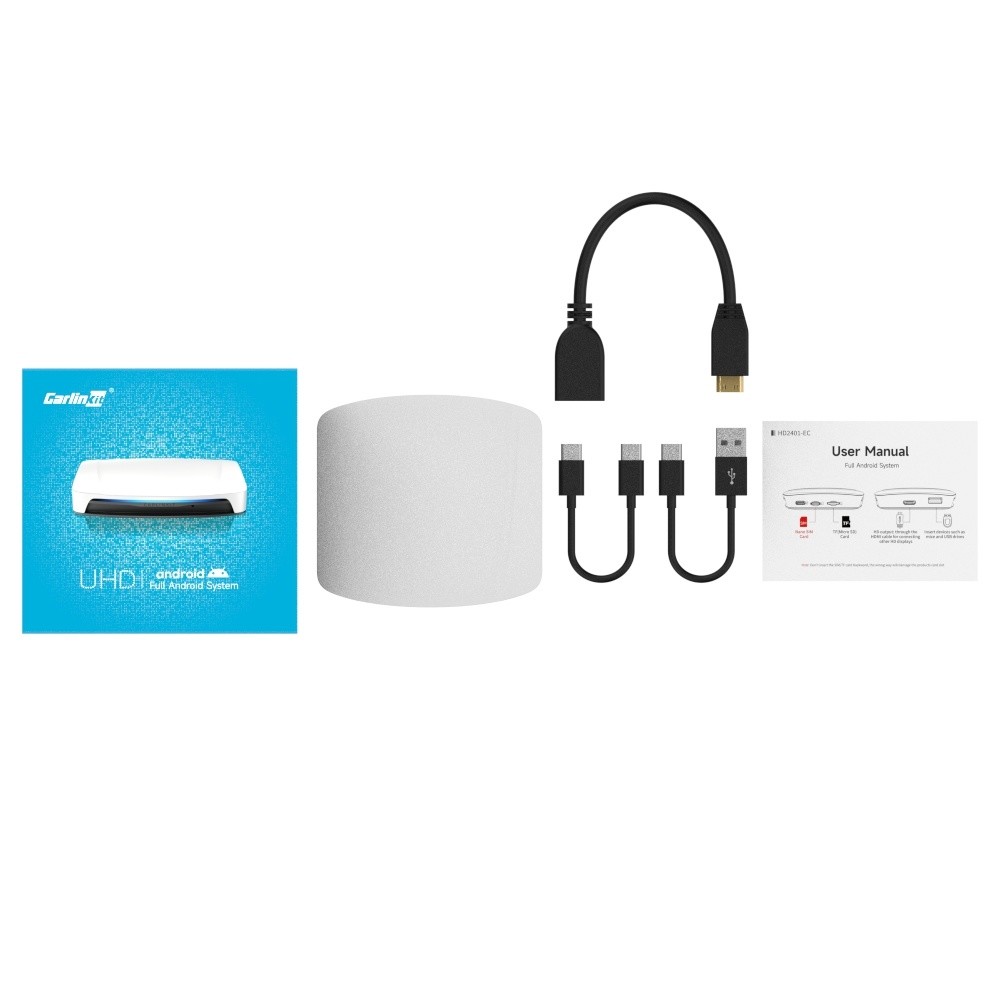

| Packing List | Packing Box* 1, Product *1, Data cable *2, HDMI Adapter *1, Product Manual *1,Ejection Pin *1 |
Car models with wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay: iOS10+, iPhone6+
Wireless Android Auto: Android 11.0+
HDMI Cinema Mode
Ensuring crisp and clear visuals on secondary screen.
Simply connect device via HDMI and turn on the secondary screen to activate.
Designed for passenger viewing only and not visible to the driver when vehicle in motion.
Wide Compatibility
Compatible with car models with Android system 4.4+
Support over 600+ car models covers most of the mainstream brand
iPhone 6 and above models, iOS 10 or above version.
Android phone: support for Android 11.0 and above
High-Quality Audio and Video
Delays are minimized for smooth audio and video playback.
Supports high-resolution audio streaming for a better in-car entertainment experience.
Apple Music, Spotify, and Pandora help streaming favorite songs and playlists seamlessly
Dual channel switching
Dual channel switching, enabling effortless transition between Carplay (default) and Android Auto modes.
Switching modes via the TF card (requires file transfer) or using the pin port located at the bottom
Insert the card's pin and hold for approximately 3 seconds to switch modes, green light indicating Carplay mode.
