Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | CarlinKit |
| Certification: | RoHs/FCC/CE/TELEC/NCC/SRRC |
| Model Number: | CPC200-TBox UHD(SM6225 128G) |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | Gift carton 110*106*39mm |
| Delivery Time: | 3-5 days |
| Supply Ability: | 10,000 carton per month |
|
Detail Information |
|||
| CPU: | Qualcomm’s SM6225 Quad-core | GPU: | Adreno 610 |
|---|---|---|---|
| ROM: | 8GB LPDDR4 RAM+128GB UFS ROM | WIFI Frequency: | 802.11a/b/g/n/ac, 2.4G+5G |
| Bluetooth Version: | 5.0 BR/EDR/BLE | System: | Android 13 |
| Highlight: | Carplay And Andriod Auto To Multi Media Tbox,Carplay And Andriod Auto Tbox Ai Box,CPC200-Tbox UHD Wireless Adapter |
||
Product Description
Carplay& Andriod Auto to Multi Media - Tbox UHD USB HDMI Port 8G 128Gb SM6225
Android 13 Video Ai Box Wireless Adapter for Wireless Youtube Netflix
Built-in Full Android 13.0, Wireless Apple CarPlay, Wireless Android Auto
Feature enables HDMI connection, facilitating HD image output connectivity with HD displays.
Split-screen display allows for seamless multitasking without interference
High sensitivity: Built-in 5G smart chip, 2.4GHz/5.8GHZ connection fast speed processing & response
Wireless CarPlay easy to play music, get navigation, use Siri wire-free
| Model | CPC200-Tbox-UHD |
| CPU | Qualcomm’s SM6225 Quad-core ARM Cortex-A73, Kryo 265 Gold @2.4GHz+Quad-core ARM Cortex- A53,Kryo 265 Silver @1.9GHz) 6 nm N6 process |
| GPU | Adreno 610 |
| Memory | 8GB LPDDR4 RAM+128GB UFS ROM |
| Support Extension | 512GB |
| WiFi Module | WCN3980 |
| MFI | MFI 3959 |
| Operator Version | NA(North America)/EAU(Europe, Asia)/JP(Japan) |
| Communication Standard | LTD-FDD/LTE-TDD/WCDMA/GSM/EDGE |
| Global Positioning | GPS/GLONASS/BeiDou |
| Bluetooth frequency | 5.0 BR/EDR/BLE |
| Power Input | 5V+/-0.2V 2A |
| Power Consumption | 6W |
| WiFi Frequency | 802.11a/b/g/n/ac, 2.4G+5G |
| Material | ABS |
| Colour | White |
| The wireless CarPlay | iPhone 6 and above / iOS 10.0 and above |
| Wireless Android Auto | Android phone with Android 11.0 and above |
| Compatible Car | Car with factory wired CarPlay/wired Android Auto |
| Resolution | Adaptive (maintain the original protocol resolution) |
| Language | Multiple languages around the world, such as: Arabic, Chinese, English, French |

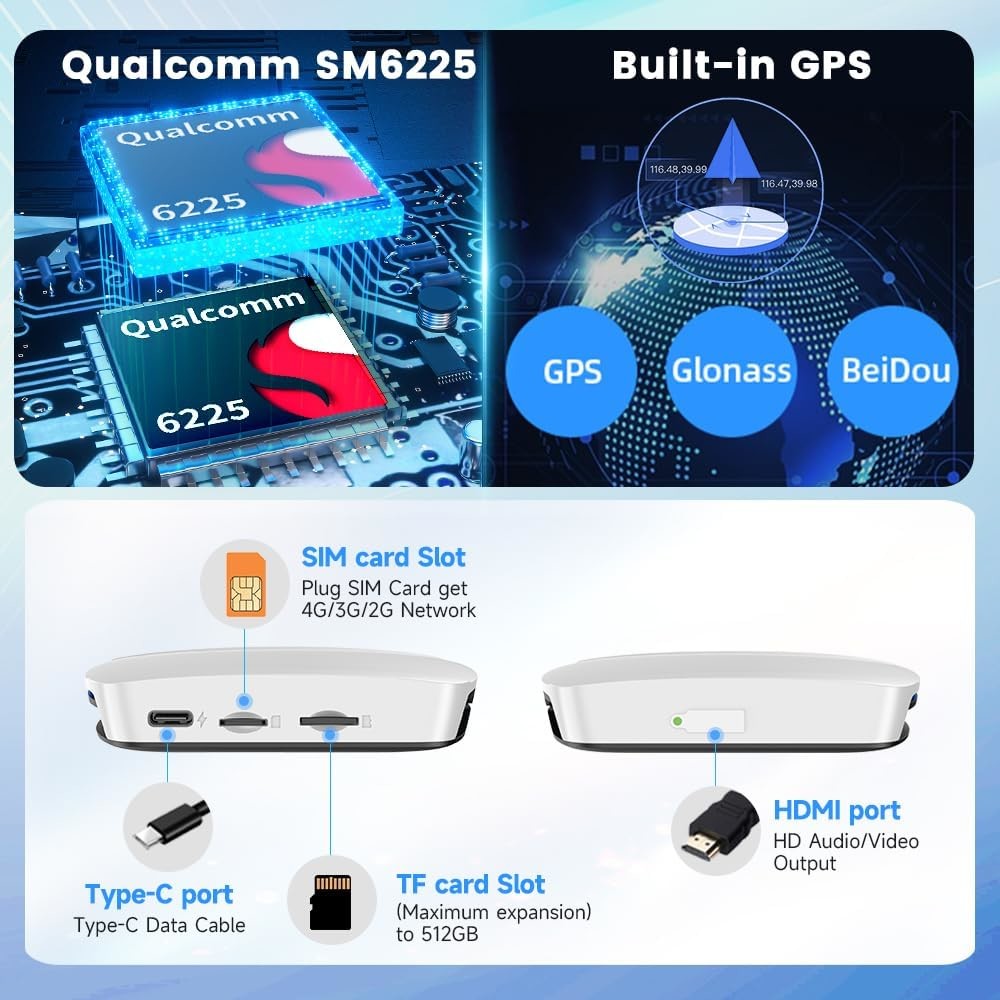

| Port | LED Light, Type-C Female Port, TF Card Slot, HDMI port |
| Date cable | USB-A to USB-C*1 USB-C to USB-C*1 L=300mm HDMI Adapter*1 L=170mm |
| Product Size | 90*84.9*17.1mm 3.54*3.34*0.67 inch |
| Package Dimensions | 110*106*39mm |
| Product Weight | 0.1034kg |
| Packing Gross Weight | 0.244kg |

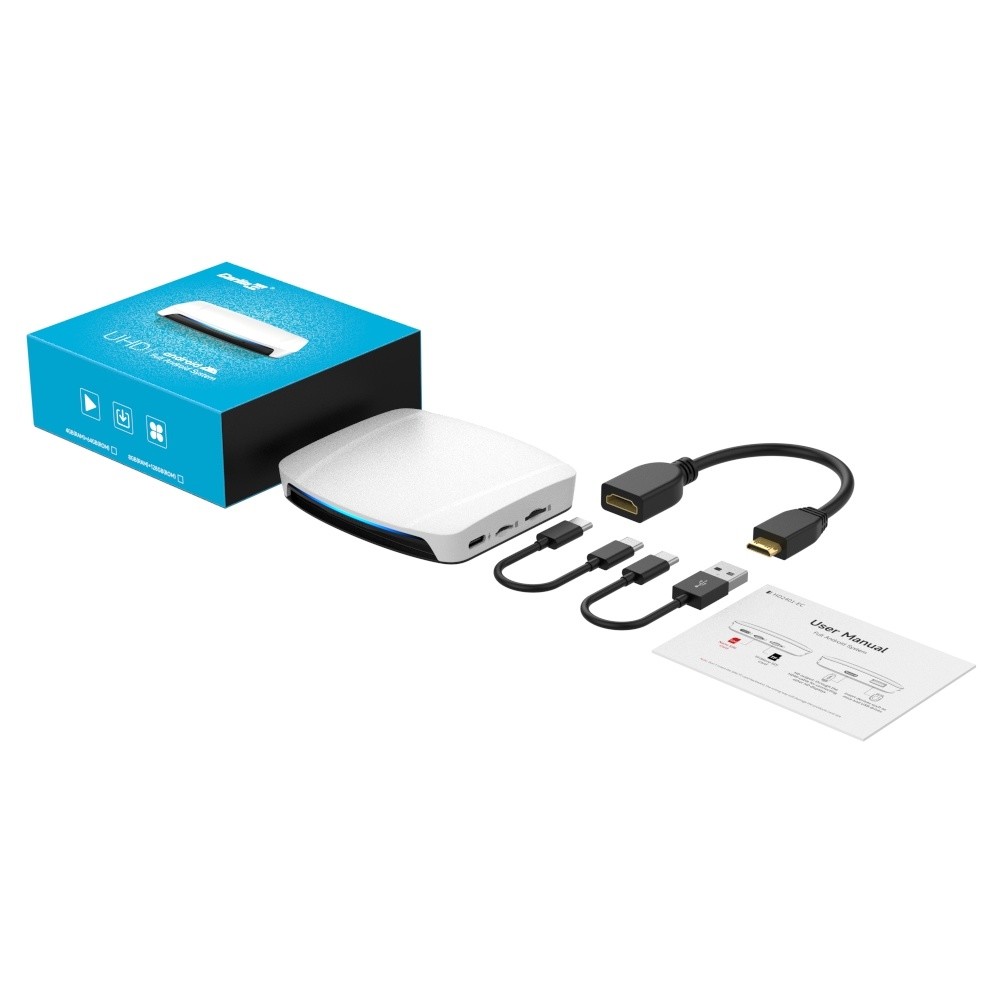

| Packing List | Packing Box* 1, Product *1, Data cable *2, HDMI Adapter *1, Product Manual *1,Ejection Pin *1 |
Car models with wired CarPlay or Android Auto
Projection playback: secondary/rear screen supports HDMI input
Wireless CarPlay: iOS10+, iPhone6+
Wireless Android Auto: Android 11.0+
Plug-and-Play Setup
Plug & play design for easy installation & setup; no additional apps or software required
Connect the adapter to your car's USB port, pair with Phone via Bluetooth and Wi-Fi.
Automatically connect to phone wirelessly when car start with convenience
New low power consumption upgrade
Built-in 5G smart chip, fast processing speed and high sensitivity response
Low power consumption module, less heat and dissipates heat quickly
Facilitate to work stably and long-lastingly, quick responde
Sub-meter positioning accuracy to lane level
Can access popular navigation apps like Apple Maps, Google and Waze
Real-time directions, traffic updates, and estimated arrival time
High-definition rendering technology to restore the real road scene
HDMI Cinema Mode
Ensuring crisp and clear visuals on secondary screen.
Simply connect device via HDMI and turn on the secondary screen to activate.
Designed for passenger viewing only and not visible to the driver when vehicle in motion.
